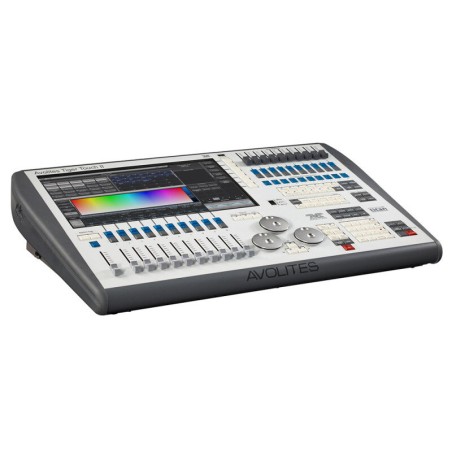

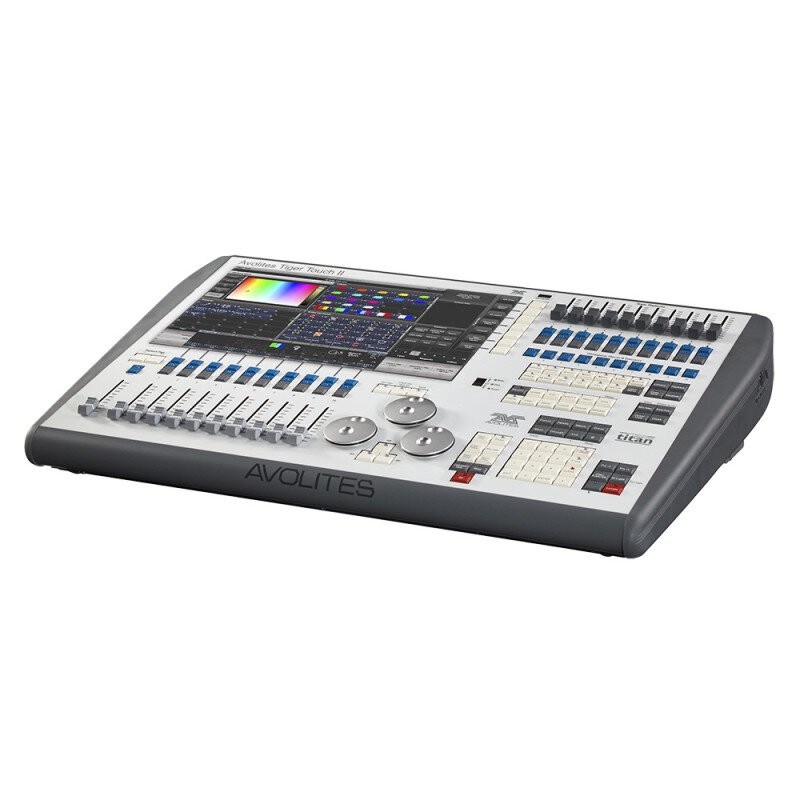

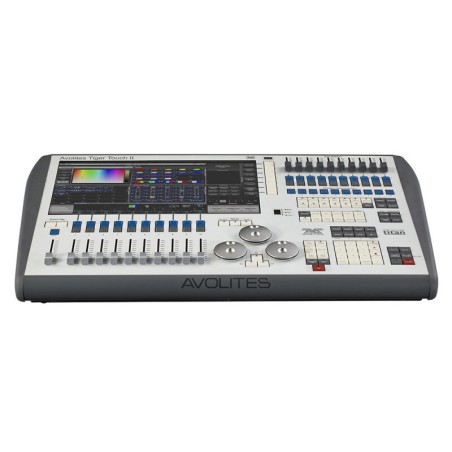

Avolites Tiger Touch II

Hardware features

• 20 playback faders - 10 macro / executor buttons
• Schermo touchscreen da 15,6" ad alta luminosità

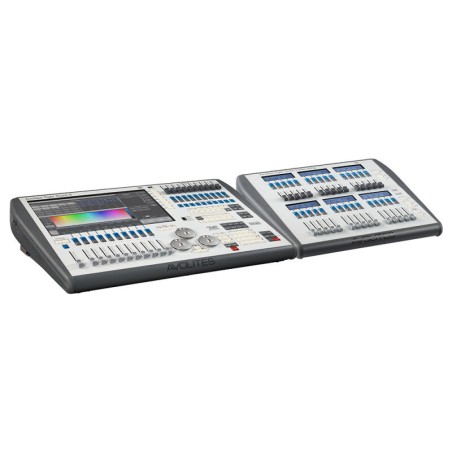

• Superficie di controllo espandibile con l'opzionale Tiger Touch Fader Wing
• 3 encoder ottici di alta qualità
• Supporta uno schermo aggiuntivo
• Sicurezza Avokey integrata
• UPS integrato

Software

• Software platform: Avolites Titan
• DMX channels per device: 8192 max.
• DMX channels per system: 32,768
• 3D Visualisation: capture engine built in
• Max. fixtures: unlimited
• Keyframe effect engine: custom effects with any number of keyframes
• Pixel mapping: animation based, video via Synergy
• External control: Web API, MIDI, DMX, sACN
• Titan Net: multi-user with any Titan console
• Output formats: Art-Net, sACN, or DMX-512
• OS: Microsoft Windows 10 Enterprise

Connectivity

• DMX-512: 4 x Neutrik 5-pin XLR, optically isolated
• Network: 2 x 1 Gb Ethernet connections
• Mains power: IEC
• Data / peripherals: 4 x USB 2.0 plus 1 x USB 2.0 front-mounted
• External display: Display Port and DVI (one active output only)
• MIDI: IN & OUT 5-pin DIN
• SMPTE: 3-pin XLR
• Switch trigger: 1/4" jack

Physical specifications

• Power consumption: 80 W
• Power specification: 110 - 240 V_AC 50/60 Hz
• Heat output: 272.8 BTU/hr
• Operating environment ambient temp: 0 to 40 °C
• Max humidity 95% relative noncondensing
• Internal UPS 5 separate 5-minute periods, fully software integrated
• Unit dimensions (W x D x H): 674 x 435 x 147 mm
• Weight: 15.2 kg
• Flight case dimensions: 750 x 620 x 300 mm
• Weight in flight case: 29.4 kg
