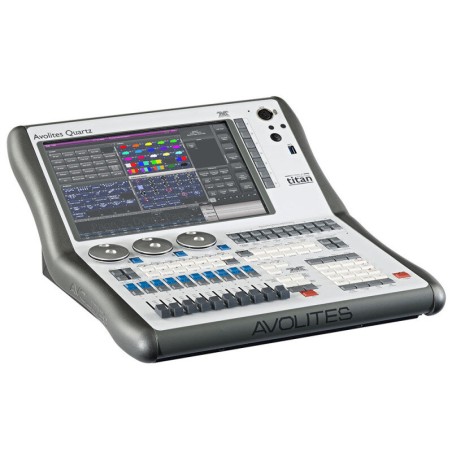

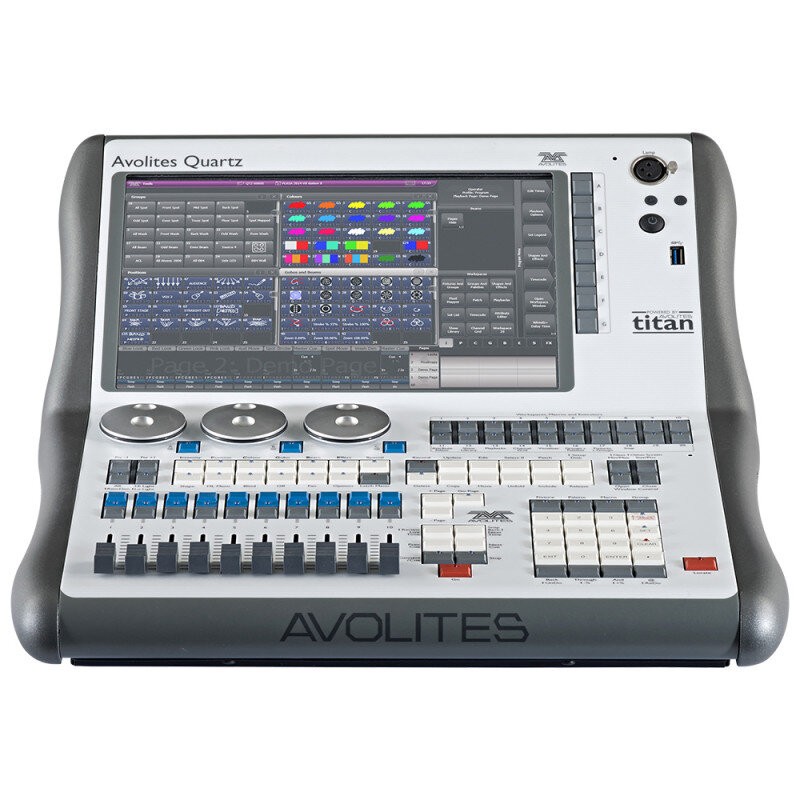

Avolites Quartz

Hardware features

• 10 playback faders
• 20 Macro / Executor buttons
• 3 x high quality optical encoder wheels
• 12.1" high-brightness touchscreen
• Super-compact- just 42.5 cm (16.5") wide
• Solid State internal storage
• Expand control surface with optional Mobile Fader Wing
• Supports one additional touchscreen
• Avokey security built-in

Software

• Software platform: Avolites Titan
• DMX channels per Device: 8,192
• Max DMX channels per System: 32,768
• Max. fixtures: Unlimited
• Keyframe Effect Engine: Custom effects with any number of keyframes
• 3D visualisation: Capture engine built in
• Pixel Mapping: Animation based, video via Synergy
• External control: Web API, MIDI, DMX, S-ACN
• Titan Net: Multi-user and Backup with any Titan console
• Output formats: ArtNet, S-ACN, or DMX-512, any combination
• OS: Microsoft Windows 10 Enterprise

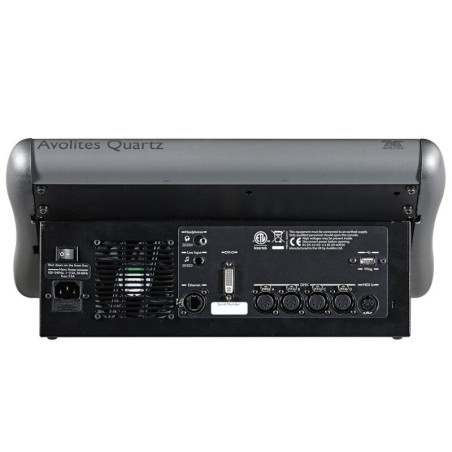

Connectivity

• DMX-512: 4 x Neutrik 5-pin XLR, optically isolated
• Network: 1 x 1 Gb etherCON
• Mains power: IEC
• Data / Peripherals: 2 x USB 3.0, one front-panel mounted, one rear mounted
• External display: 1 x DVI-D max. resolution 1920 x 1200
• MIDI: IN via 5-pin DIN
• Audio OUT: 3.5 mm stereo jack
• Audio Triggers: 1/4" stereo jack

Physical Specification

• Unit dimensions (W x D x H): 425 x 466 x 194 mm
• Weight: 8 kg
• Flight-case dimensions: 520 x 480 x 300 mm
• Weight in flight-case 15.65 kg
• Power consumption: 80 W
• Power specification: 110 - 240 V_AC, 50/60 Hz
• Heat Output: 272.8 BTU/hr
• Operating Environment: Ambient temp 0-40 °C / 32-104 F. Max humidity 95% relative non-condensing
