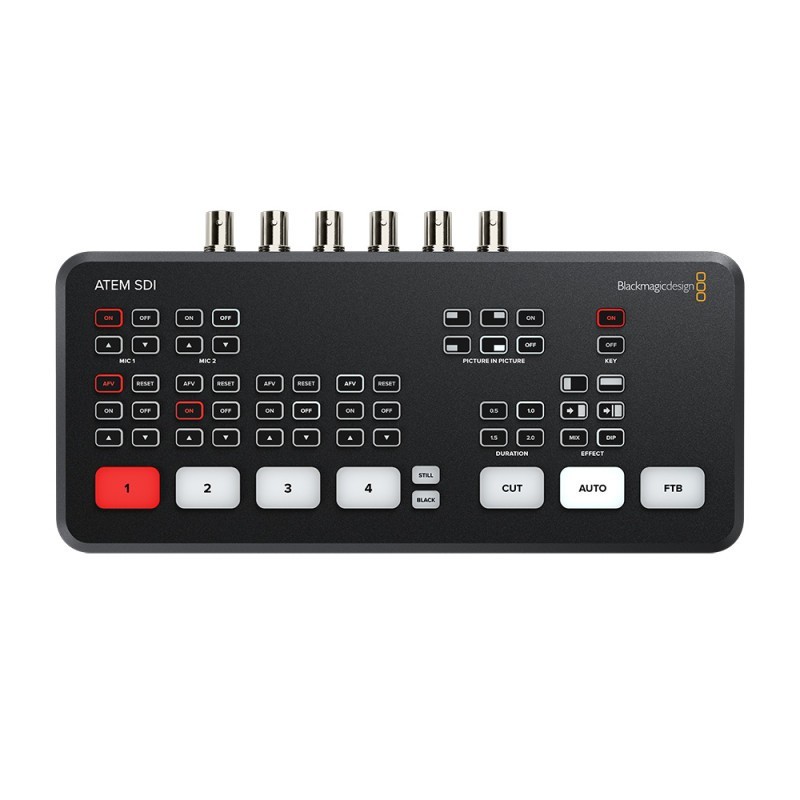

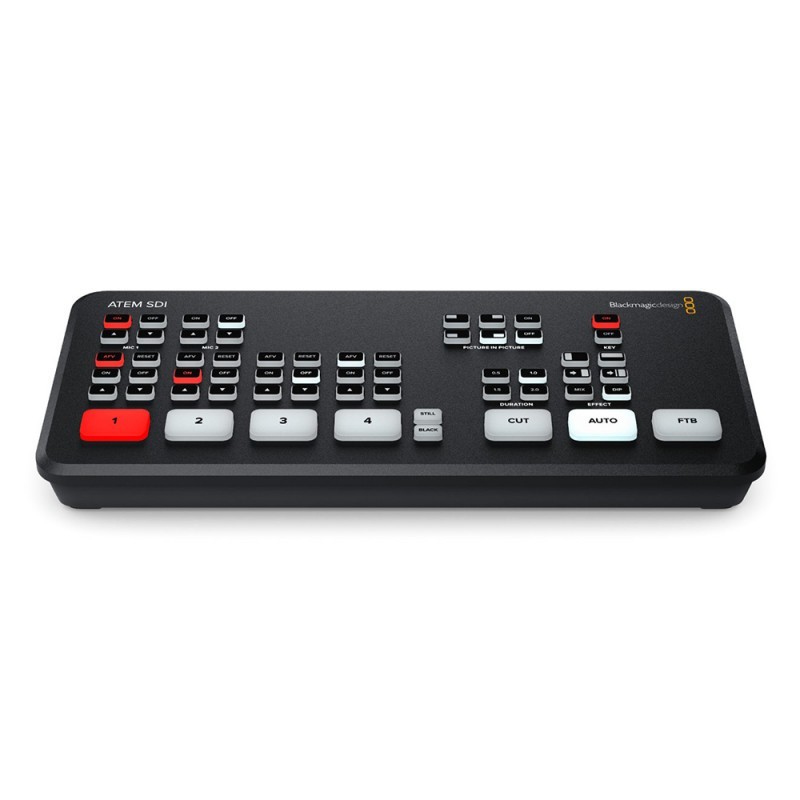

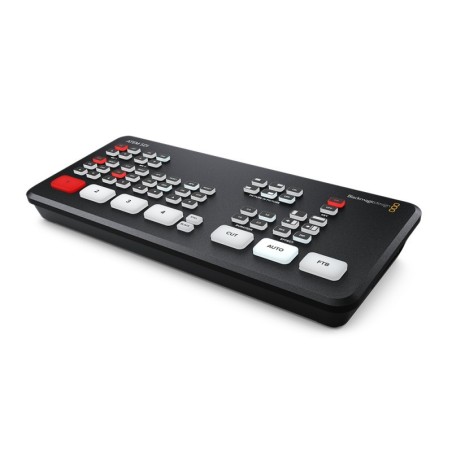

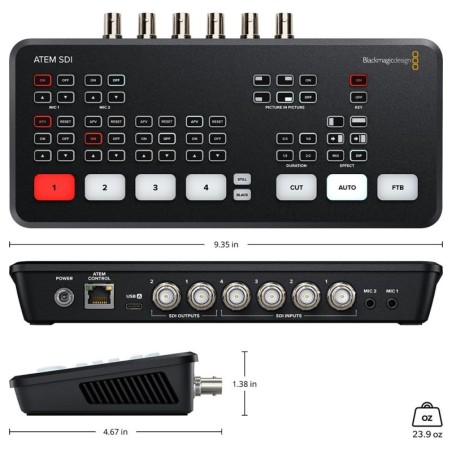

Blackmagic Design ATEM SDI

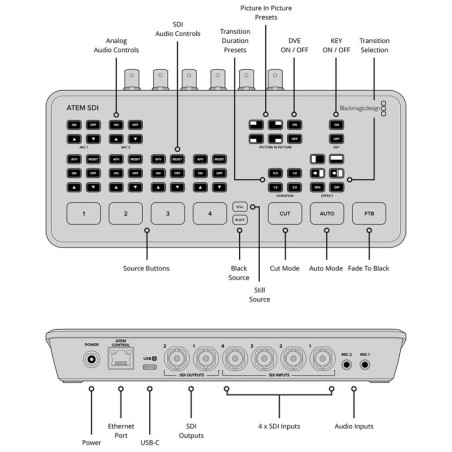

Connections

• Total Video Inputs: 4
• Total Outputs: 3
• Total Aux Outputs: 2
• Total Audio Inputs: 2 x 3.5 mm stereo mini-jack
• Total Audio Outputs: None, embedded audio only
• Time Code Connection: None
• SDI Video Inputs: 4 x 3G-SDI, 10-bit HD switchable   |  2 channel embedded audio
• Video Input Re-Sync: On all 4 SDI inputs
• Frame Rate and Format Converters: On all 4 SDI inputs
• SDI Program Outputs: 2
• Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection
• Computer Interface: 1 x USB Type-C 2.0 for webcam out, software control, software updates and panel connection

Standards

• HD Video Input Standards: 720p50, 720p59.94, 720p60   |  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60   |  1080i50, 1080i59.94, 1080i60
• HD Video Output Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• Video Streaming Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• Ultra HD Video Standards: None
• Video Sampling: 4:2:2 YUV
• Color Precision: 10-bit
• Color Space: Rec 709
• Colorspace Conversion: Hardware based real time

Product Specifics

• Upstream Keyers: 1
• Downstream Keyers: 1
• Advanced Chroma Keyers: 1
• Linear/Luma Keyers: 2
• Transition Keyer: DVE only
• Total Number of Layers: 5
• Pattern Generators: 1
• Color Generators: 2
• DVE With Borders and Drop Shadow: 1
• Interface: Minimum monitor resolution of 1366 x 768

Audio

• Audio Mixer: 6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
• Analog Input: Unbalanced stereo
• Analog Input Delay: Up to 8 frames
• Input Impedance: 1.8k
• Max Input Level: +6 dBV
• Mic Plug In Power: Available on both 3.5 mm mini-jack connections

Media Player

• Media Players: 1
• Channels: Fill and key for each Media Player
• Media Pool Still Image Capacity: 20 with fill and key
• Media Pool Still Image Format: PNG, TG A, BMP, GIF, JPEG and TIFF

Control

• Control Panel: Built in control panel. Software control panel included. Supports optional hardware panel.
• Control Panel Connection: Ethernet supports 10/100 BaseT. Allows direct connection between panel and chassis, or via network. Also used for updating the software. ATEM SDI supports direct USB-C connection.
• Control Panel Compatibility: Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel and ATEM 2 M/E Broadcast Panel.
• Control Panel Included: ATEM Software Control Panel included free for Mac 11.0 Big Sur, Mac 12.0 Monterey or later and Windows 10 or 11.

Software

• Software Updates: Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.
• Configuration: Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.

Operating Systems

• Mac 11.0 Big Sur, Mac 12.0 Monterey or later
• Windows 10 and 11

Power Requirements

• Power supply: 1 x External 12 V power supply
• Power Usage: 18W

Environmental Specifications

• Operating Temperature: 5° C to 40° C (41° - 104° F)
• Storage Temperature: -10° to 60° C (14° to 140° F)
• Relative Humidity: 0% to 90% non-condensing

What's Included

• ATEM SDI
• External 12 V_DC power supply with international socket adapters
