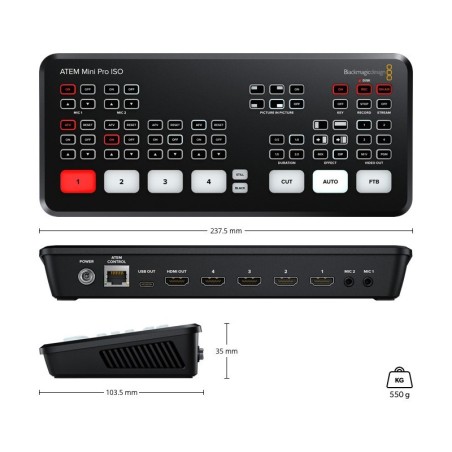

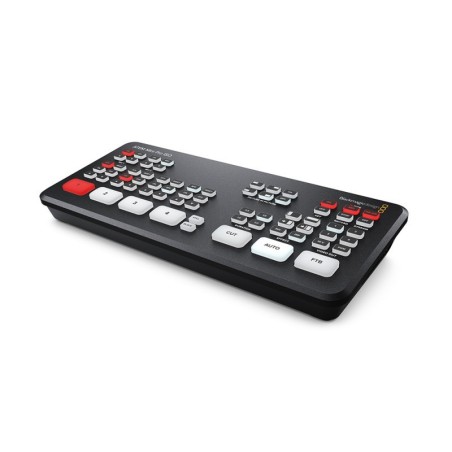

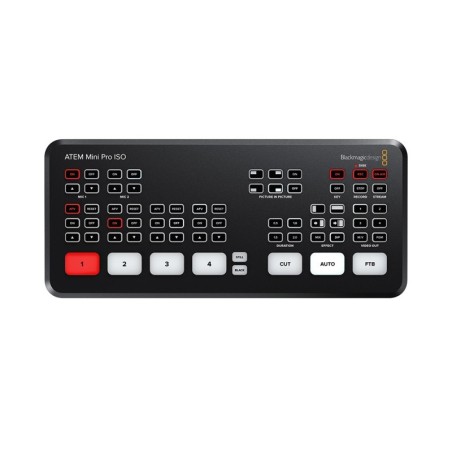

Blackmagic Design ATEM Mini Pro ISO

Connections

• Total Video Inputs: 4
• Total Outputs: 2
• Total Aux Outputs: 1
• Total Audio Inputs: 2 x 3.5 mm stereo mini jack.
• Total Audio Outputs: None, embedded audio only.
• Time Code Connection: None
• HDMI Video Inputs: 4 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio.
• Video Input Re-Sync: On all 4 HDMI inputs.
• Frame Rate and Format Converters: On all 4 HDMI inputs.
• HDMI Program Outputs: 1
• Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
• Computer Interface: 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.

Product Specifics

• Upstream Keyers: 1
• Downstream Keyers: 1
• Advanced Chroma Keyers: 1
• Linear/Luma Keyers: 2
• Transition Keyer: DVE only.
• Total Number of Layers: 5
• Pattern Generators: 1
• Color Generators: 2
• DVE with Borders and Drop Shadow: 1
• Interface: Minimum monitor resolution of 1366 x 768.

Audio

• Audio Mixer
  • 6 input x 2 channel mixer
  • Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
  • Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
• Analog Input: Unbalanced stereo
• Analog Input Delay: Up to 8 frames
• Input Impedance: 1.8k
• Max Input Level: +6 dBV
• Mic Plug In Power: Available on both 3.5 mm mini-jack connections.

Direct Streaming: ATEM Mini Pro ISO supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP).

Power Requirements

• Power supply: 1 x External 12 V power supply.
• Power Usage: 36 W

What's Included

• ATEM Mini Pro ISO
• External 12 V DC power supply with international socket adapters

Warranty: 12 Months Limited Manufacturer's Warranty.
