Blackmagic Design Video Assist 7” 3G

Connections

• SDI Video Inputs: 1
• SDI Video Outputs: 1
• SDI Rates: 270Mb, 1.5G, 3G
• HDMI Video Inputs: 1
• HDMI Video Outputs: 1
• Analog Audio Inputs: 2 x balanced mini XLR with phantom power
• Analog Audio Outputs: 1 x 3.5 mm headphone jack.
• Built in Speaker: Mono
• Screen Dimensions: 7 inch 1920 x 1200.
• Screen Brightness: 310nits
• SDI Audio Inputs: 16 channels embedded via SDI
• SDI Audio Outputs: 16 channels embedded via SDI
• HDMI Audio Inputs: 8 channels embedded via HDMI
• HDMI Audio Outputs: 8 channels embedded via HDMI
• Remote Control: 1 x 2.5 mm LANC for Record Start and Stop.
• SD Interface: Dual UHS-I SD slots.
• Storage Type: SDXC UHS-I and SDHC UHS-I SD cards. Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards.
• Computer Interface: 1 x USB Type‑C for initial setup, software updates and Video Assist Utility software control.

Control

• Recorder Control: Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus.
• External Control: LANC, SDI and HDMI start/stop, Time Code run.

Software

• Software Included: Blackmagic Video Assist Operating System

Power Requirements

• Power supply: 1 x External 12 V power supply. Compatible with Sony NP-F style batteries. (batteries not included)

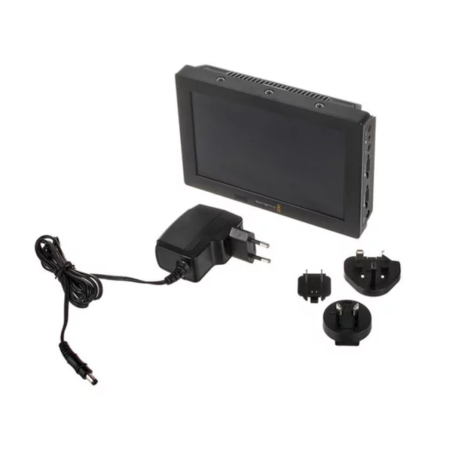

What's Included

• Blackmagic Video Assist 7" 3G
• Universal power supply with international adapters

Warranty

• 12 Month Limited Manufacturer’s Warranty.
