Blackmagic Design Pocket Cinema Camera 4K

• Marchio: Blackmagic Design
• Categoria: Videocamere
• Effective Sensor Size 18.96 mm x 10 mm (Four Thirds)
• Lens Mount Active MFT mount.
• Lens Control Iris, focus and zoom on supported lenses.
• Dynamic Range 13 Stops.
• Shooting Resolutions 4096 x 2160 (4K DCI), 3840 x 2160 (Ultra HD), 1920 x 1080 (HD).
• Frame Rates Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Off-speed frame rates up to 60 fps in 4K DCI, 120 fps in HD windowed.
• Focus Focus button turns on peaking, auto focus available using compatible lenses.
• Iris Control Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in lm mode. Scene average auto exposure in video mode.
• Screen Dimensions 5" 1920 x 1080.
• Screen Type LCD capacitive touchscreen.
• Metadata Support Automatically populated lens data from electronic Micro Four Thirds lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.

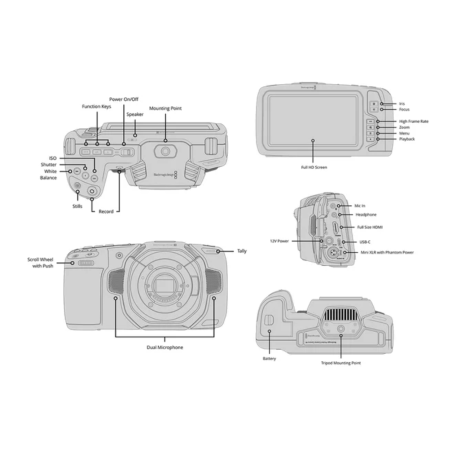

• Controls Touchscreen menus on 5 inch screen. 1 x Power Switch, 1 x Record Button, 1 x Stills Button, 1 x Scroll Wheel with push integrated into handgrip, 1 x ISO Button, 1 x White Balance, 1 x Shutter Button, 3 x software con gurable Fn buttons, 1 x High Frame Rate (HFR) Button, 1 x Zoom Button, 1 x Menu Button, 1 x Play Button, 1 x Focus Button and 1 x IRIS Button.

Connections

• Total Video Inputs None.
• Total Video Outputs 1 x HDMI Type A
• Analog Audio Inputs 1 x mini XLR analog switchable between mic with Phantom power support and line level (up to +14dBu). 1 x 3.5 mm Stereo Input. Can also be used for Time Code input.
• Analog Audio Outputs 1 x 3.5 mm headphone jack.
• Computer Interface USB Type-C for external drive recording, software updates and media download.
